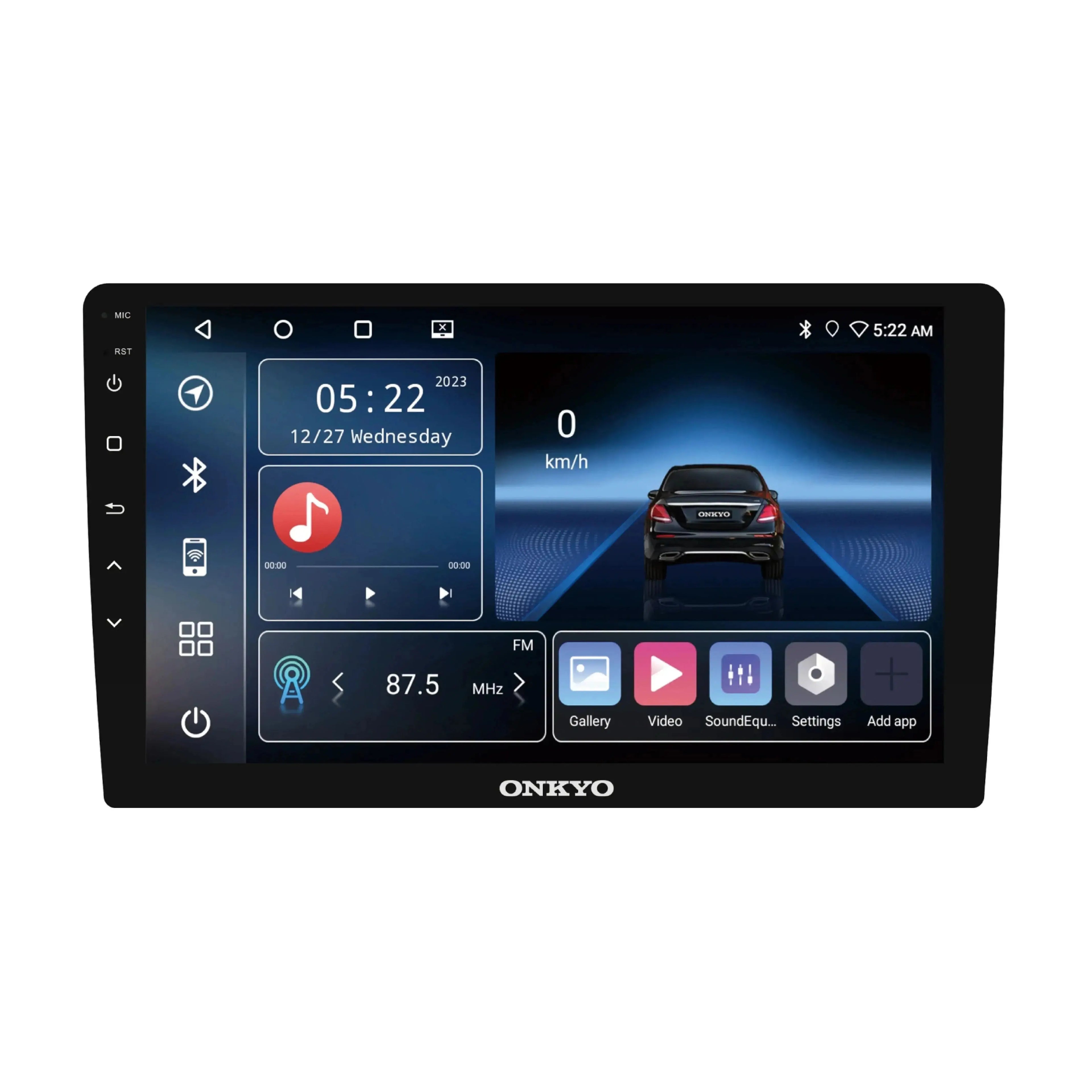

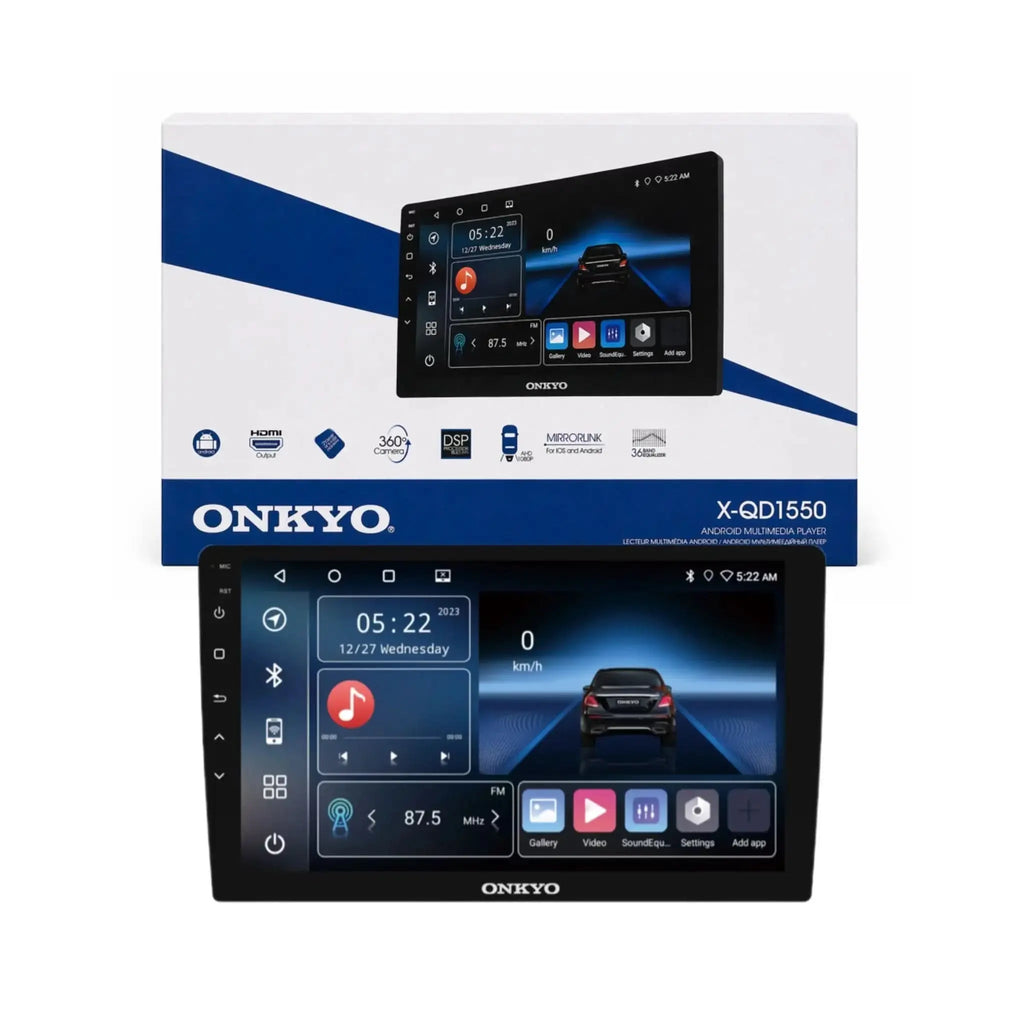

ONKYO X-QD1550 Android Multimedia Player

Upgrade your driving experience with the ONKYO X-QD1550 Android Multimedia Player, designed for smooth performance, powerful audio, and seamless connectivity. Built with advanced hardware and a modern interface, this system delivers everything you need for entertainment, navigation, and control inside your car.

Powered by the OY13.0 operating system, this multimedia player ensures fast performance and responsive operation. With 4GB RAM and 64GB internal storage, you get smooth multitasking, quick app launches, and ample space for apps, music, and videos.

The high-definition 9-inch or 10-inch TFT display offers a 1280 x 720 resolution with 500 nits brightness, ensuring clear visuals even in daylight. Whether you’re watching videos or using navigation, the screen delivers sharp and vibrant output.

Equipped with Bluetooth 4.2 + EDR, the system enables stable wireless connectivity for hands-free calling and music streaming. The built-in radio supports FM frequency from 87.5 to 108.0 MHz, ensuring access to your favorite stations.

The ONKYO X-QD1550 also delivers powerful audio output with 4 x 50W maximum power, providing a rich and immersive sound experience. It supports multiple audio formats including MP3, AAC, FLAC, and APE, along with video formats such as MP4, MKV, AVI, and FLV.

Designed for versatility, it supports USB connectivity for both reading and charging, making it convenient for everyday use. The system operates efficiently within a wide voltage range and temperature conditions, ensuring reliability in different environments.

Key Features

• Android-based OY13.0 operating system
• 4GB RAM and 64GB internal storage
• 9-inch / 10-inch HD display (1280 x 720 resolution)
• Bluetooth 4.2 + EDR for calling and music
• Powerful 4 x 50W audio output
• USB support for media and charging
• Wide compatibility with audio and video formats
• Bright and clear 500 nits display
• Stable performance across varying temperatures

Technical Specifications

General

• Operating Voltage: 14.4V (10.5V – 16V)
• Installation Thickness: 42mm
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Weight: 748g (9”), 851g (10”)

System

• Operating System: OY13.0
• RAM: 4GB
• Storage: 64GB

Radio

• FM Frequency: 87.5 – 108.0 MHz
• MW Frequency: 522 – 1620 KHz
• T Series: Without AM

Bluetooth

• Version: BT 4.2 + EDR
• Range: Up to 5 meters
• Frequency Band: 2.4 GHz

USB Interface

• Output: 5V ± 0.25V / 1A

Audio

• Max Power: 4 x 50W
• Front Output: 1V / 10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4 – 8Ω

Display

• Size: 9.0” / 10.0”
• Resolution: 1280 x 720
• Contrast Ratio: 500
• Brightness: 500 nits

Video Input

• System: NTSC / PAL / SECAM
• Input: 1VP-P / 75Ω

Supported Formats

• Video: H264, MP4, AVI, MKV, FLV
• Audio: MP3, APE, AAC, FLAC
