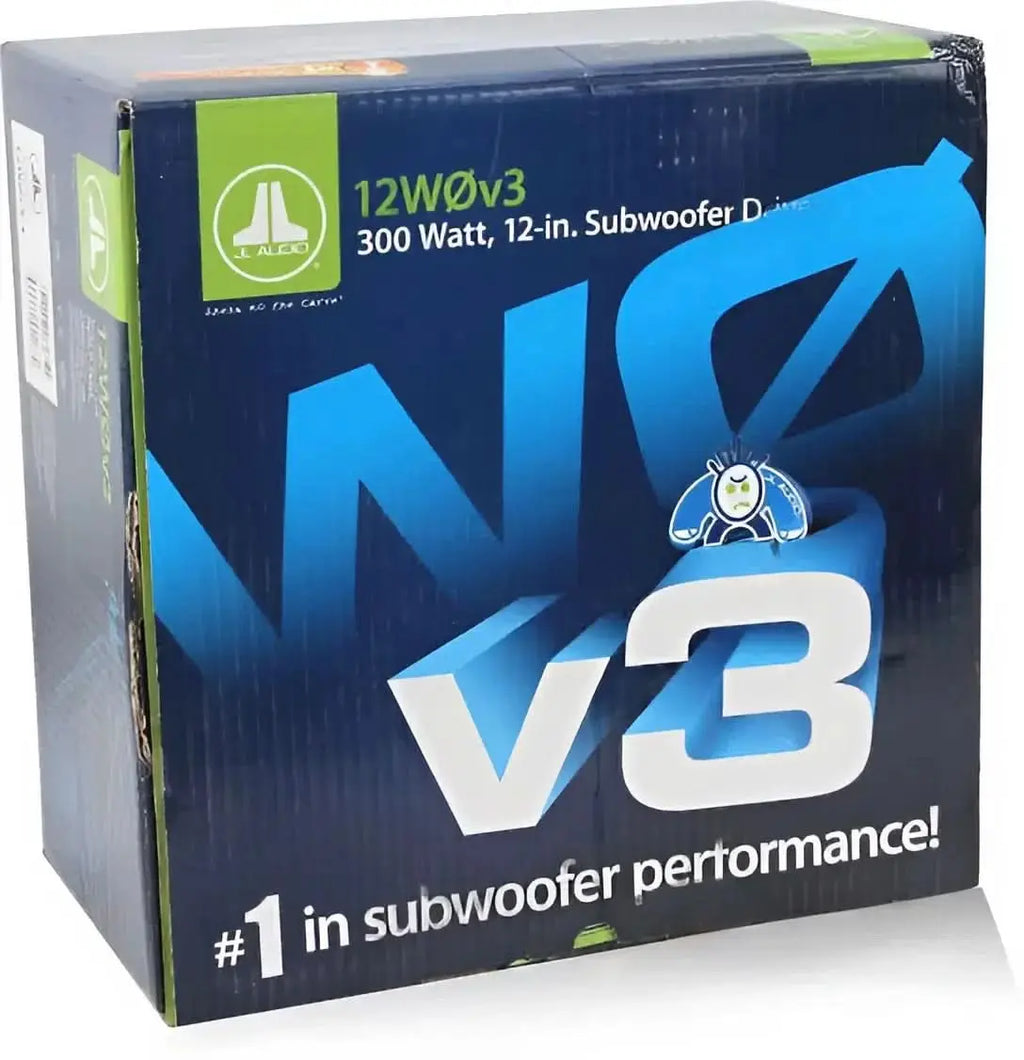

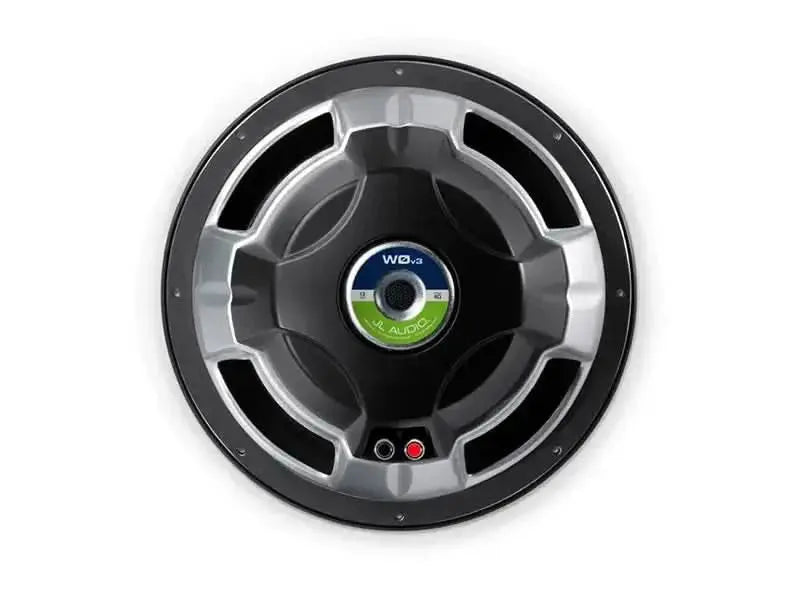

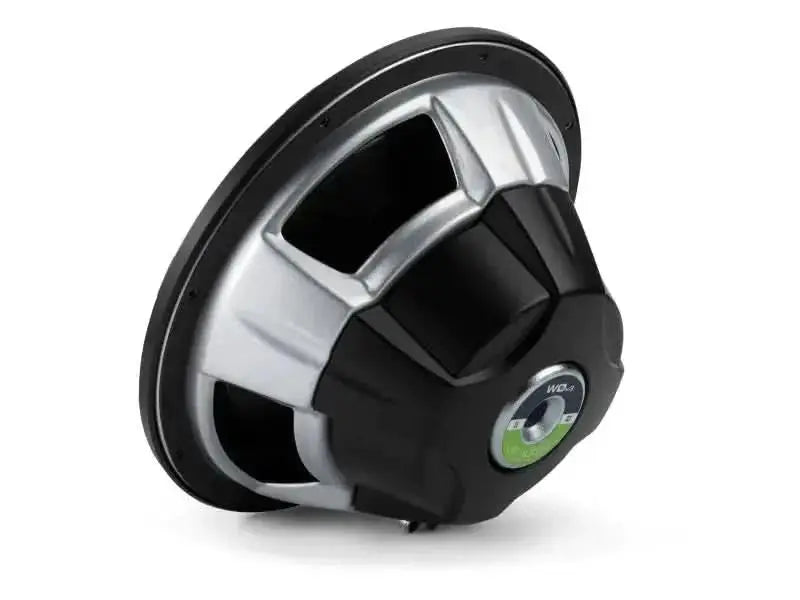

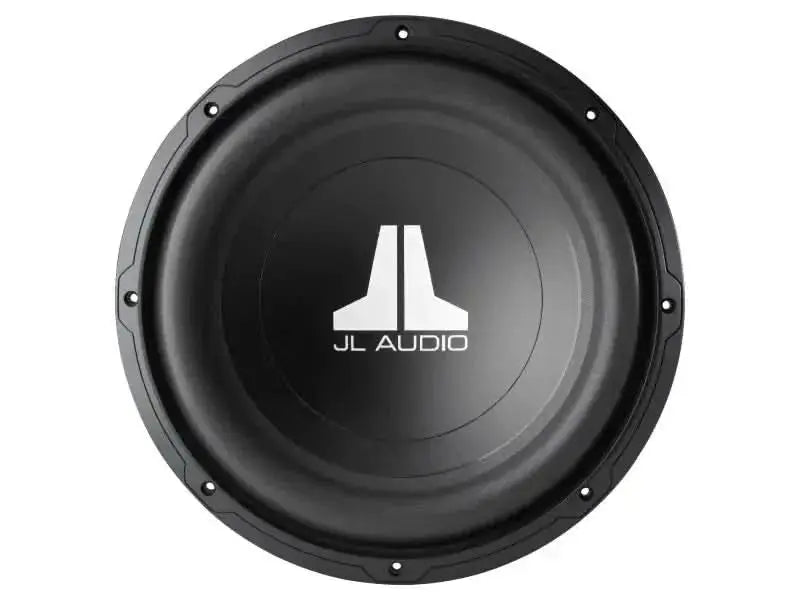

JL Audio 12W0V3-4 12" Subwoofer (300W RMS) - Sahiba Car
1/4

JL Audio 12W0v3-4 300W RMS Subwoofer

Rs. 12,500.00
Sale price  Rs. 12,500.00 Regular price  Rs. 16,990.00
Taxes included. Shipping calculated at checkout.
Specifications

Type: Without Amplifier & Enclosure (Passive)
Size: 12 inches
Total RMS Wattage: 300
Impedance: 4 ohms
Warranty: 1 Year Brand Warranty

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.

Specifications:

  • Continuous Power Handling (RMS): 300 W
  • Recommended Amplifier Power (RMS): 75 - 300 W
  • Nominal Impedance (Znom): 4Ξ©
  • Nominal Diameter: 12.0 in / 300 mm
  • Overall Diameter (A): 12.52 in / 318 mm
  • Mounting Hole Diameter (B): 11.0625 in / 281 mm
  • Bolt Hole Circle Diameter (C): 11.7 in / 297 mm
  • Motor Outer Diameter (D): 5.05 in / 128 mm
  • Mounting Depth (E): 5.40 in / 137 mm
  • Driver Displacement: 0.048 cu ft / 1.36 L
  • Net Weight: 8.11 lb / 3.68 kg
  • Free Air Resonance (Fs): 28.43 Hz
  • Electrical β€œQ” (Qes): 0.715
  • Mechanical β€œQ” (Qms): 10.709
  • Total Speaker β€œQ” (Qts): 0.67
  • Equivalent Compliance (Vas): 2.530 cu ft / 71.64 L
  • One-Way Linear Excursion (Xmax)*: 0.45 in / 11.4 mm
  • Reference Efficiency (no): 0.22%
  • Efficiency (1 W / 1 m)**: 85.64 dB SPL
  • Effective Piston Area (Sd): 74.509 sq in / 0.0481 sq m
  • DC Resistance (Re): 4.280 Ξ©
