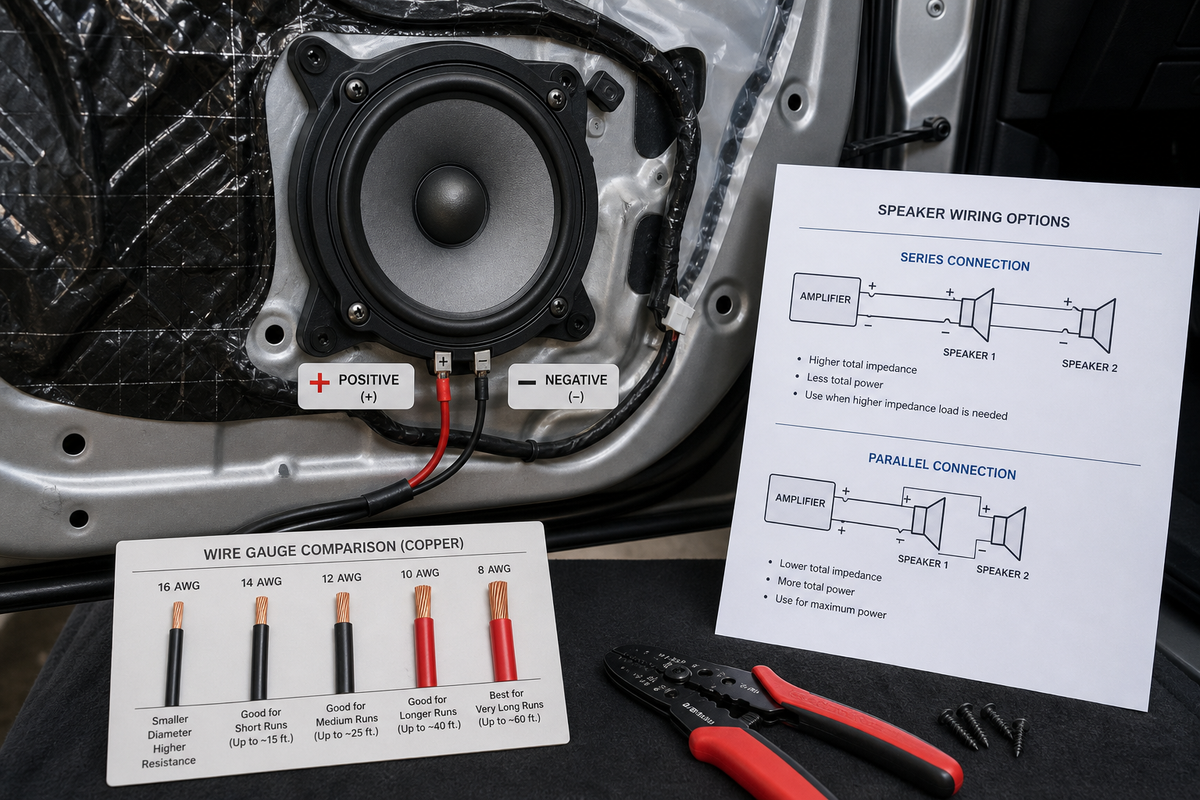

Car speaker wiring affects sound quality, amplifier load, and long-term reliability. The key rules are simple: keep polarity consistent, choose wire gauge by power and run length, match total speaker impedance to the amplifier, and avoid improvised joins or exposed conductors.
This guide explains how to wire car speakers correctly, when series or parallel wiring makes sense, and which installation mistakes cause weak bass, distortion, or amplifier shutdown.
What speaker polarity means
Speaker polarity is the relationship between the positive and negative terminals on the speaker and the positive and negative outputs from the head unit or amplifier. When polarity is correct, all speakers move in the same acoustic direction at the same time.
If one speaker is wired backward, it becomes out of phase with the others. In a car, that usually causes weaker mid-bass, poor center image, and a thin or unfocused soundstage rather than total silence.
Typical polarity markings
- Speaker terminals: usually marked + and -
- Wire jacket: one side may have a stripe, printed text, ridge, or different color
- Factory harnesses: color codes vary by vehicle, so do not assume across brands
When replacing OEM speakers, installation parts such as speaker spacers and coupler sets can help preserve a cleaner connection path instead of cutting and rejoining wires unnecessarily.
How to identify correct speaker polarity
The safest method is to verify the markings on the speaker, adapter harness, and amplifier or stereo output before making the final connection. If the original wires are unclear, check the vehicle-specific harness pinout or test one channel at a time instead of guessing.
A quick listening check also helps. If left and right door speakers are wired with opposite polarity, vocals often feel diffuse and bass drops noticeably when both speakers play together.
Practical polarity checklist
- Find the + and - marking on the speaker basket or terminal block.
- Trace the same polarity from the stereo or amplifier output.
- Use the same conductor marking on every run, such as striped wire to negative on all channels.
- Test balance and fader after installation to confirm each speaker plays from the correct location.
Choosing the right speaker wire gauge
Wire gauge determines how much resistance the cable adds to the circuit. Lower gauge numbers mean thicker wire with less resistance. In car audio, thicker wire is more important as power increases and cable runs get longer.
For most door speakers on head-unit power, 18 AWG is commonly sufficient for short runs. For amplifier-powered speakers, 16 AWG is a safer default, while 14 AWG is often preferred for higher-power setups or longer runs to the doors, rear deck, or cargo area.
Simple gauge guide
| Wire gauge | Typical use | When it fits best |
|---|---|---|
| 18 AWG | Low-power speaker runs | Factory replacement speakers on short runs |
| 16 AWG | General aftermarket speaker wiring | Most 2-channel and 4-channel amplified speakers |
| 14 AWG | Higher-current speaker runs | Long runs, higher RMS power, or lower impedance loads |
| 12 AWG | Special cases | Subwoofer leads or very high-power short speaker runs |
Do not oversimplify gauge choice to speaker size alone. Power, impedance, and cable length matter more than whether the speaker is 6.5 inch or 6x9.
If you are planning a powered upgrade, understanding the amplifier side first helps. A dedicated 4-channel amplifier changes current demand and makes proper wire sizing more important than it is on basic head-unit power.
Series vs parallel wiring explained
Series and parallel wiring change the total impedance seen by the amplifier or stereo. That impedance determines how much current the amplifier must supply. Getting it wrong can reduce output, cause shutdown, or damage equipment.
Series wiring
In series wiring, current flows through one speaker and then the next. Total impedance adds together.
- Two 4-ohm speakers in series = 8 ohms total
- Higher total impedance means less current draw
- Output is usually lower than with a lower-ohm equivalent load
Series wiring is sometimes used when you must raise total impedance to stay within an amplifier's safe operating range. It is less common for standard front and rear car speaker installations.
Parallel wiring
In parallel wiring, both speaker positives connect together to amplifier positive, and both negatives connect together to amplifier negative. Total impedance decreases.
- Two 4-ohm speakers in parallel = 2 ohms total
- Lower total impedance means more current draw
- The amplifier must be rated stable at that load
Parallel wiring is common in subwoofer systems and in some custom speaker layouts, but it should never be used without checking the amplifier's minimum impedance rating first.
Which is better for car speakers: series or parallel?
For most car door speakers, neither method is the default recommendation. The usual best practice is one speaker per channel, or one component set per properly designed crossover network and channel pair.
Series wiring is generally safer for amplifier load but reduces available output. Parallel wiring can increase demand on the amplifier and is only appropriate if the amplifier is designed to handle the resulting impedance.
Use this rule
- One speaker per channel: best for most head units and 4-channel amplifiers
- Series: use when you need to increase total impedance
- Parallel: use only when the amplifier is rated for the lower final load
If your system includes a separate bass channel, the wiring plan becomes more sensitive to final impedance. That is especially true when adding a car subwoofer alongside door speakers.
How to calculate total impedance
Series formula
Add the speaker impedances directly.
Example: 4 ohms + 4 ohms = 8 ohms
Parallel formula
For two same-value speakers, divide the impedance by the number of speakers.
Example: two 4-ohm speakers in parallel = 2 ohms
For mixed values, use the reciprocal formula: 1/R total = 1/R1 + 1/R2 +...
Always calculate before wiring, not after installation. Many amplifier problems blamed on "bad sound" are actually impedance mismatches.
Common speaker wiring mistakes
1. Reversing polarity on one side
This is one of the most common mistakes in first-time installs. The system will still play, but bass response and imaging usually suffer immediately.
2. Using wire that is too thin
Thin wire increases resistance and wastes amplifier output as heat. It is more likely to matter on higher-power systems and long cable runs.
3. Running multiple speakers on one channel without calculating load
This often happens when users add extra speakers in parallel because the wiring seems simple. The result can be an unsafe low-ohm load that overheats the amplifier.
4. Twisting wires together without secure termination
Loose joins create intermittent sound, crackling, and shorts. Use proper crimping, soldering where appropriate, and insulation with heat shrink or high-quality automotive tape.
5. Routing speaker wire next to power cable for long distances
Speaker-level wiring is less sensitive than low-level RCA signal cables, but poor routing can still increase the chance of noise issues in more complex systems. Keep cable paths organized and separated where practical.
6. Ignoring installation hardware
Speaker performance depends not only on wiring but also on fitment and sealing. If the speaker does not mount securely, the output can suffer even when wiring is correct. Vehicle-specific speaker installation accessories are relevant when spacing, couplers, or fitment depth are part of the job.
Basic step-by-step car speaker wiring process
- Disconnect the negative battery terminal before major wiring work.
- Confirm speaker impedance and amplifier or head-unit compatibility.
- Choose wire gauge based on power and run length.
- Route wire cleanly and avoid sharp edges, moving parts, and wet areas.
- Connect positive to positive and negative to negative on every channel.
- Insulate every join and secure the loom so it cannot rattle or chafe.
- Test each speaker with balance and fader before reassembling panels.
If the upgrade also includes new drivers, a dedicated car speakers page can help with matching replacement speaker types to your vehicle and system plan.
When to use an amplifier instead of head-unit power
If the speakers have higher RMS power handling, low sensitivity, or you want better control at higher volume, amplifier power is usually the better wiring destination. A head unit can run basic replacement speakers, but it has limited clean output.
When adding an amplifier, speaker wiring quality matters more because current delivery and load stability become more critical. That is also why series and parallel decisions should be based on the amplifier's rated impedance stability, not guesswork.
FAQ
Does polarity matter when connecting car speakers?
Yes. Correct polarity keeps speakers moving together, which preserves bass response, imaging, and tonal balance.
What happens if one car speaker is wired backward?
The speaker may still work, but it can be out of phase with the others. Common symptoms are weak bass, a vague center image, and reduced overall coherence.
Is 16 AWG enough for car speakers?
For most amplifier-powered door speakers, yes. It is a practical general-purpose choice. Higher-power systems or longer runs may justify 14 AWG.
Is series or parallel wiring better for door speakers?
Usually neither is ideal compared with one speaker per channel. If you must combine speakers, choose the method that keeps the final impedance within the amplifier's safe rating.
Can I wire two 4-ohm speakers to one channel?
Yes, but only after calculating the final load. In series they become 8 ohms; in parallel they become 2 ohms. The amplifier must support the chosen load.
